Geospatial binning with hexagons on spark

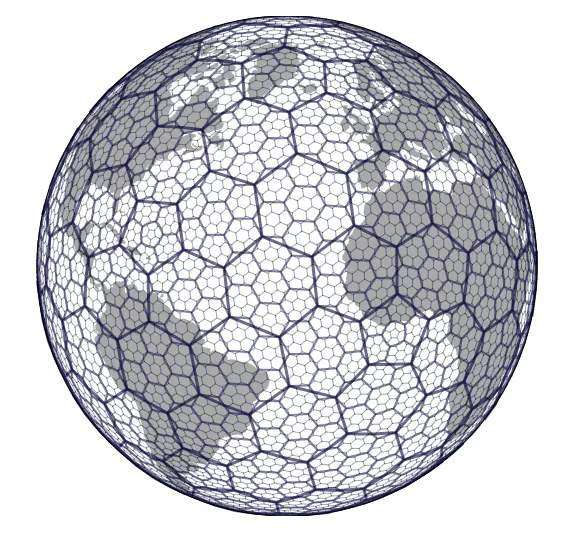

Discrete global grid systems recently got quite some attention in the GIS community when Uber released H3 https://eng.uber.com/h3/.
It is a hexagonal spatial index. Neighbours can be accessed easily.
Several tasks are supported:
- spatial index
- spatial smoothing
- efficient spatial join
And a variety of libraries around the core c based code has been created. https://github.com/uber/h3-py-notebooks nicely demonstrates how spatial anomaly detection can be quickly built using the python API.
But wouldn’t it also be great to use this functionality in spark? They do provide a java library: https://github.com/uber/h3-java
Adding this to spark is straight forward. Using your build tool of choice first add a dependency to the jar.
// https://mvnrepository.com/artifact/com.uber/h3
compile group: 'com.uber', name: 'h3', version: '3.6.0'
or just start an interactive shell such as:
spark-shell --packages 'com.uber:h3:3.6.0'
and run:
import com.uber.h3core.H3Core
import org.apache.spark.sql.expressions.UserDefinedFunction
import org.apache.spark.sql.DataFrame
@transient lazy val h3 = new ThreadLocal[H3Core] {
override def initialValue() = H3Core.newInstance()
}
def convertToH3Address(xLong: Double, yLat: Double, precision: Int): String = {
h3.get.geoToH3Address(yLat, xLong, precision)
}
val geoToH3Address: UserDefinedFunction = udf(convertToH3Address _)
def createSpatialIndexAddress(result: String,
XLongColumn: String,
YLatColumn: String,
precision: Int)(df: DataFrame): DataFrame = {
df.withColumn(
result,
geoToH3Address(col(XLongColumn), col(YLatColumn), lit(precision)))
}
which can now be used as:
val df = Seq((1,2), (3,4)).toDF("x", "y")
df.transform(createSpatialIndexAddress("h3","x", "y", 7)).show(false)
+---+---+---------------+
|x |y |h3 |
+---+---+---------------+
|1 |2 |877545796ffffff|
|3 |4 |8775642cdffffff|
+---+---+---------------+
Other functions of the H3 library can be supported similarly. Using the hexagons greatly simplifies efficient spatial smoothing and aggregation (hexbinning).
